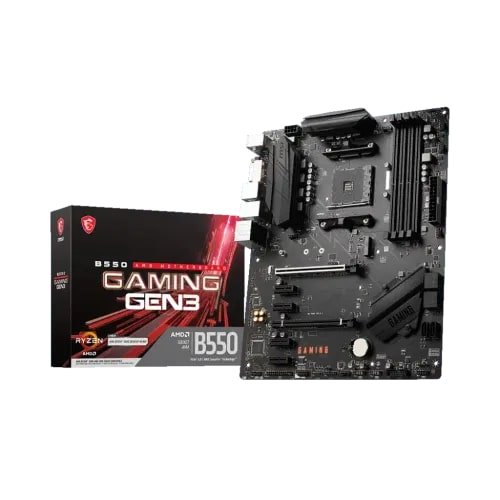

Name: MSI B550 GAMING GEN3 AMD AM4 ATX Motherboard
Brand: MSI
SKU: B550 GAMING GEN3
Availability: InStock

Home Mother Board MSI (AMD) MSI B550 GAMING GEN3 AMD AM4 ATX Motherboard

MSI B550 GAMING GEN3 AMD AM4 ATX Motherboard

Quick Overview

Model: B550 GAMING GEN3
Supported CPU: AMD Ryzen 5000 & 3000 Series desktop processors
Supported RAM: 4x DDR4, up to 4400(OC) MHz
Graphics Output: 1 x HDMI, 1x DVI-D port
Features: 1 x M.2 Slot, Realtek RTL8111H LAN

Availability: In stock

Email to a Friend:

Brand: MSI

Description
Reviews (0)
Tags

Description

Specification
Brand	MSI
Model	B550 GAMING GEN3
Supported CPU	Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors Processor socket AM4
Chipset	AMD B550 Chipset
Form Factor	ATX Form Factor
Form Factor	12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Audio	Realtek ALC897 Codec
Audio	7.1-Channel High Definition Audio
Expansion Slots
PCI	2x PCIe x16 slots
	PCI_E1 slot (From CPU)
	Supports PCIE 3.0 x16
	PCI_E4 (From B550 chipset)
	Supports PCIe 3.0 x4
	4x PCIe x1 slots
	PCI_E2, E3, E5 and E6 slots (From B550 chipset)
	Supports PCIe 2.0 X1
Memory
Type	DDR4
Slots	4x memory slots
Supported Memory	Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
	Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
	1DPC 1R max speed 4400 MHz
	1DPC 2R max speed 3733 MHz
	2DPC 1R max speed 3866 MHz
	2DPC 2R max speed 3466 MHz
	Dual channel memory architecture
	Supports non-ECC UDIMM memory
	Supports ECC UDIMM memory (non-ECC mode)
	Supports un-buffered memory
Maximum Memory	128GB
Graphics
Graphics	1x DVI-D port, support a maximum resolution of 1920×1200 @60Hz
Graphics	1x HDMI™ 2.0b port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz
Max Shared Memory	16GB
Connector & Ports
HDMI	1x HDMI 2.0b
DVI-D (s)	1x DVI-D port
USB (s)	1x USB 3.2 Gen 1 5Gbps connector (From B550 chipset)
	Supports additional 2 USB 3.2 Gen 1 5Gbps ports
	2x USB 2.0 connectors (From B550 chipset)
	Supports additional 4 USB 2.0 ports
LAN Port (s)	1x Realtek RTL8111H LAN controller
Supported Storage	6x SATA 6Gb/s ports (From B550 chipset)
	1x M.2 slot (Key M)
	M2_1 slot (From CPU)
	Supports PCIe 3.0 x4
	Supports SATA 6Gb/s
	Supports 2260/ 2280/ 22110 storage devices
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Internal I/O Ports	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x 4-pin CPU fan connector
	1x 4-pin water-pump fan connector
	4x 4-pin system fan connectors
	1x Front panel audio connector
	2x System panel connectors
	1x Chassis Intrusion connector
	1x Serial port connector
	1x Parallel port connector
	1x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x TPM module connector
Others
Special Features	2x 4-pin RGB LED connectors
Special Features	4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 Years Warranty
